CTM Central Heating Fireplaces

  • CTM Central Heating Fireplaces are manufactured with the highest quality steel DD11 which has low carbon and is enriched by adding manganese and aluminium for high heat resistance and resistance to high temperature change.

    The manufacturing and welding of CTM fireplaces are processed with modern and fully automated means of production. Automatic robot machines weld the metal parts of the fireplaces, in order to achieve a perfect welding. They are equipped with a copper heat exchanger so there is no water loss in the closed circuit when the thermal safety valve is activated. In addition, they can be connected with an open or closed expansion tank system.

    ctmlogonew

    The principle of maximum efficiency is the shell of water surrounding the combustion chamber and the exhaust routes through the water, ensuring maximum efficiency that reaches 80% of combustion. When choosing the right sized fireplace, it can feed itself all the radiators in the house without any assistance from the oil or gas boiler.

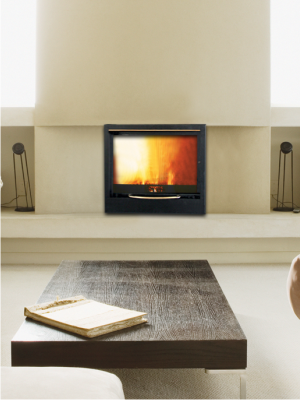

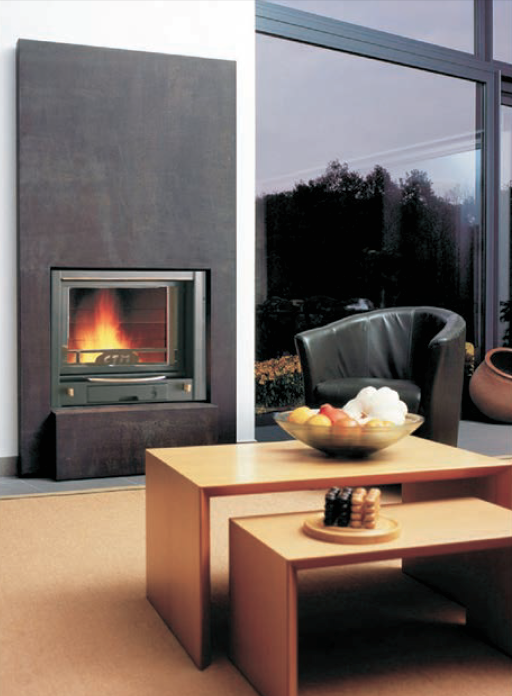

    basicplus

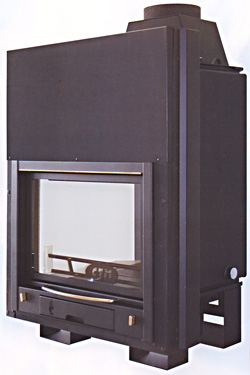

  • The BASIC PLUS series includes:

    • all necessary attachment points for easy hydraulic connection
    • vertical door opening upwards for easier use
    • flat glass
    • hermetically sealed combustion chamber
    • cast iron combustion chamber base
    • removable ash tray
    • primary combustion air inlet from indoors or outdoors
    • setting of the combustion air
    • air barrier to keep the glass clean
    • optional motor and skewer for grilling

    TECHNICAL INFORMATION   Basic plus Basic plus Basic plus
    18 24 30
    Total thermal input power KW 22.43 28.29 34.45
    Total thermal output KW 17.94 22.63 27.57
    Power to the water KW 12.49 15.98 19.54
    Power to the ambient KW 5.45 6.65 8.03
    Overall efficiency % 80.03 80.03 80
    Efficiency to the water % 71 71 71
    Fuel wood wood wood
    Consumption KG 4.63 5.85 7.15
    Working pressure BAR 1.5 1.5 1.5
    Test pressure BAR 3.5 3.5 3.5
    Expansion tank open/closed yes yes yes
    Emmisions CO % 0.182 0.182 0.182
    Water capacity LT 60 72 85
    Weight KG 248 291 315
    Chimney diameter MM 200 250 250
    Water flow diameter INCHES 1 1/4″ 1 1/4″ 1 1/4″
    Water return diameter INCHES 1 1/4″ 1 1/4″ 1 1/4″
    Sensors pocket diameter INCHES 1/2″ 1/2″ 1/2″
    Heat exchanger in/out diameter INCHES 3/8″ 3/8″ 3/8″

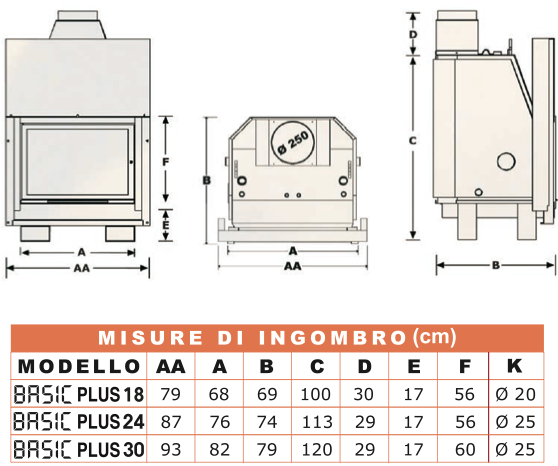

    basicplus-dimensions

  • The QUADRO series includes:

    • all necessary attachment points for easy hydraulic connection
    • swing door
    • flat glass
    • hermetically sealed combustion chamber
    • cast iron combustion chamber base
    • removable ash tray
    • primary/secondary combustion air inlet from indoors or outdoors
    • setting of the combustion air
    • cleaning glass with adjustable air flow
    • exclusive system CTM New Fire Revolution, which is a revolutionary system that manages the incoming air in three independent channels of preheated combustion air which are adjusted by the user. The three channels are: 1) primary air 2) secondary air 3) air barrier to keep the glass clean
    • afterburner chamber
    • optional motor and skewer for grilling

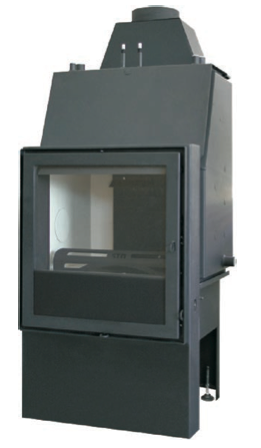

    ctm-quadro

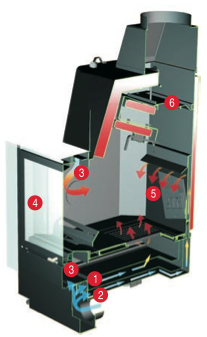

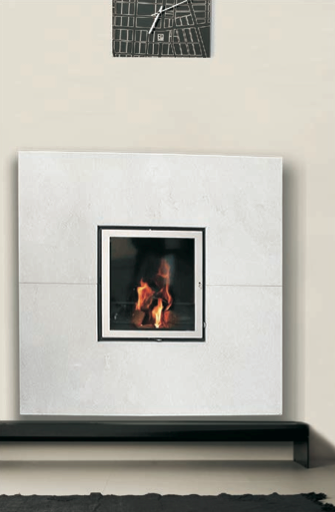

    ctm-quadro-installedctm-quadro-structure

    TECHNICAL INFORMATION   QUADRO
    Total thermal input power KW 27.83
    Total thermal output KW 23.66
    Power to the water KW 17.75
    Power to the ambient KW 5.91
    Overall efficiency % 85
    Efficiency to the water % 75
    Fuel wood
    Consumption KG 5.75
    Working pressure BAR 1.5
    Test pressure BAR 3.5
    Expansion tank open/closed yes
    Emmisions CO % 0.18
    Water capacity LT 57
    Weight KG 299
    Chimney diameter MM 200
    Water flow diameter INCHES 1 1/4″
    Water return diameter INCHES 1 1/4″
    Sensors pocket diameter INCHES 1/2″
    Heat exchanger in/out diameter INCHES 3/8″

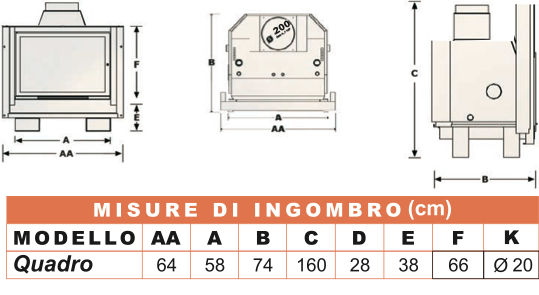

    ctm-quadro-dimensions

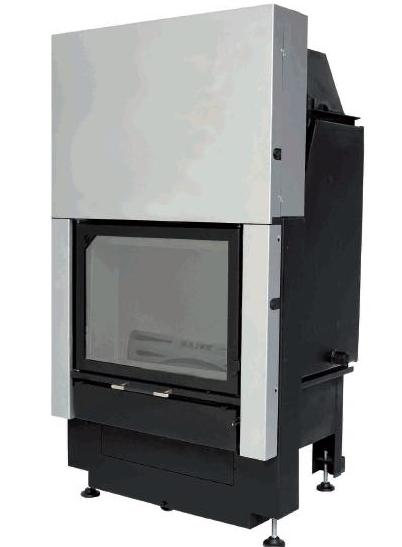

  • The MAJOR series includes:

    • all necessary attachment points for easy hydraulic connection
    • vertical door opening upwards for easier use
    • flat glass
    • hermetically sealed combustion chamber
    • cast iron combustion chamber base
    • removable ash tray
    • primary/secondary combustion air inlet from indoors or outdoors
    • setting of the combustion air
    • cleaning glass with adjustable air flow

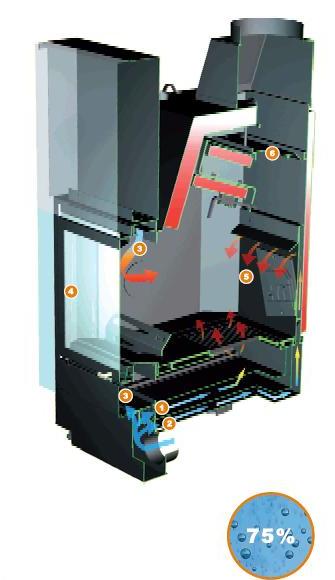

    • exclusive system CTM New Fire Revolution, which is a revolutionary system that manages the incoming air in three independent channels of preheated combustion air which are adjusted by the user. The three channels are: 1) primary air 2) secondary air 3) air barrier to keep the glass clean
    • afterburner chamber
    • wheels that facilitate the transfer of the fireplace where you have chosen to install it
    • silent door
    • optional motor and skewer for grilling


    TECHNICAL INFORMATION   MAJOR MAJOR MAJOR
    22 27 33
    Total thermal input power KW 27.15 33.74 41.69
    Total thermal output KW 22.33 27 33.36
    Power to the water KW 16.74 20.25 22.99
    Power to the ambient KW 5.59 6.75 10.38
    Overall efficiency % 80.25 80.02 80.02
    Efficiency to the water % 75 75 70
    Fuel wood wood wood
    Consumption KG 5.75 6.97 8.62
    Working pressure BAR 1.5 1.5 1.5
    Test pressure BAR 3.5 3.5 3.5
    Expansion tank open/closed yes yes yes
    Emmisions CO % 0.24 0.25 0.3
    Water capacity LT 57 70 83
    Weight KG 322 376 398
    Chimney diameter MM 200 250 250
    Water flow diameter INCHES 1″ 1 1/4″ 1 1/4″
    Water return diameter INCHES 1″ 1 1/4″ 1 1/4″
    Sensors pocket diameter INCHES 1/2″ 1/2″ 1/2″
    Heat exchanger in/out diameter INCHES 3/8″ 3/8″ 3/8″

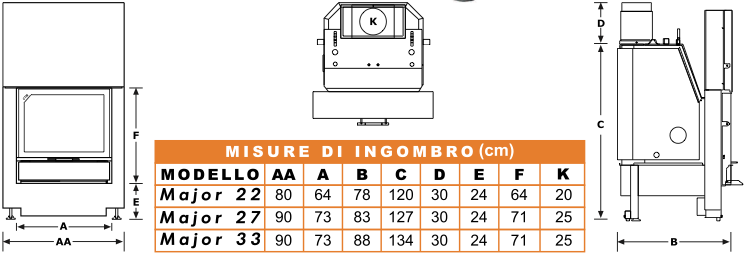

    CTM-major-dimensions
